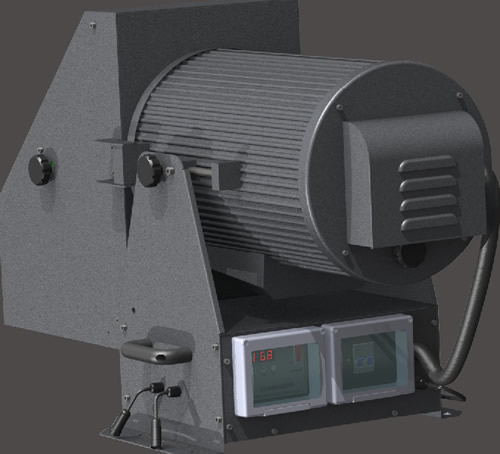

Model type: GBSMQ/DMX-XBO2000/3000W

Power source: AC220V ±5%/50Hz(1P+N+E)

Lighting source: XBO-2000/3000W sphere DC xenon light

Color system: CMY unlimited mixture

Lighting Reflector: Φ400/356/325mm,glass

Plane reflector: 250 x 230mm

Light source focus:X,Y,Z adjustable

Light pronate angle:±10⁰ adjustable

Light flex distance: ±55mm adjustable

Light beam angle:0~10⁰ adjustable

Protection mark: IP44

Control way: A.taken from go program mode; B.DMX512 External DMX512 controller mode

Channel number:5/7CH

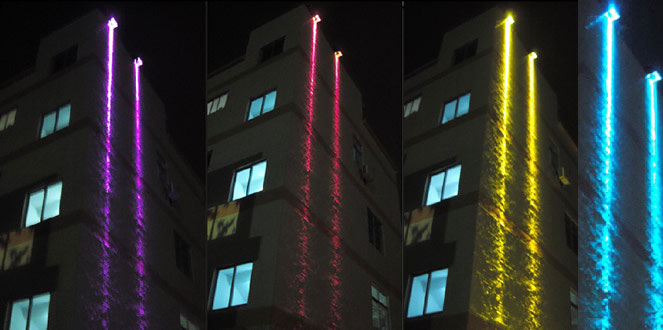

Lighting method:Downward illumination from top, in the facade formation with strong light color effect

Function: with CMY computerized changing color system, it can produce seven colors. Through DMX512/XH-485 signals, sudden and grdual change of light beams of the light groups, chasing light and so on can be achieved.

Applications: This is acompletely new lighting method,mainly used for facade lighting of high-rise or super high-rise building, especially for the facades of surface materials like ceramic tile,dope,stone materals,glass walls and compound metal plates and so on

Features: The light has godd effect of assembling light,and the brim of the light beam is very clear.Downward lighting from top is good for appreciating architecture lights,with the effect of bright top and dark bottom.As anti-dazzle light cover is designed,there willbe no lihgt pollution.All lights are installed on the edge of the parapet wall of the building roof,and as aerial operation on the sky,man is not necessary, the installation and maintainess is very convenient and safe,therefore, it is really an pragmatic innovative products.
